NEW Smart 6-Inch Multi-Functional Central Control LCD Touch Panel for Home Automation Scene Work with Tuya Zigbee Device

The NEW Smart 6-Inch Multi-Functional Central Control LCD Touch Panel for Home Automation Scene Work with Tuya Zigbee Device is compatible with Chinese and Southeast Asia standard wall boxes for simple in-wall installation. Featuring a 6-inch HD LCD IPS multi-touch screen with quadruple microphone noise reduction and auto light sensor, this smart control panel serves as a ZigBee gateway with APP remote control capability. It can directly add up to 100 Tuya ZigBee devices for intelligent control of lights, curtains, switches, smart locks, security sensors, smart sockets and other smart home devices. Configure Smart Home scenes in the APP and activate scene modes with one touch on the screen. The panel includes 2 built-in relays for local control of 2 room light switches, a built-in 1W Mono speaker for custom local and online music playback, and an automatic light sensor that adjusts screen brightness according to surroundings.

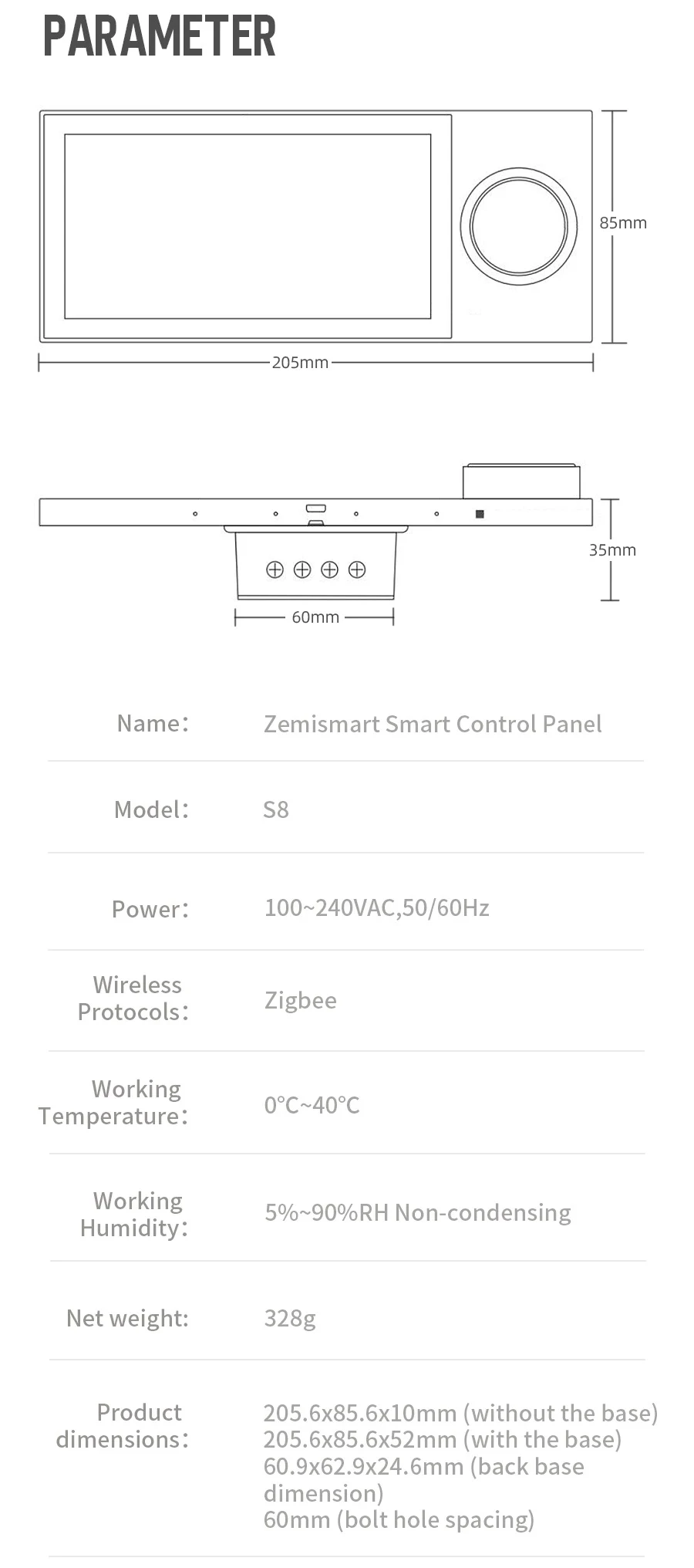

Specifications

• Product Name: Smart Multi-functional Control Panel

• Model: S8E

• Material: Plastic

• Input Power: 100-240VAC, 50/60Hz

• Working Temperature: 0℃ to 40℃

• Working Humidity: 5%-90%RH (non-condensing)

• Wireless Protocol: ZigBee

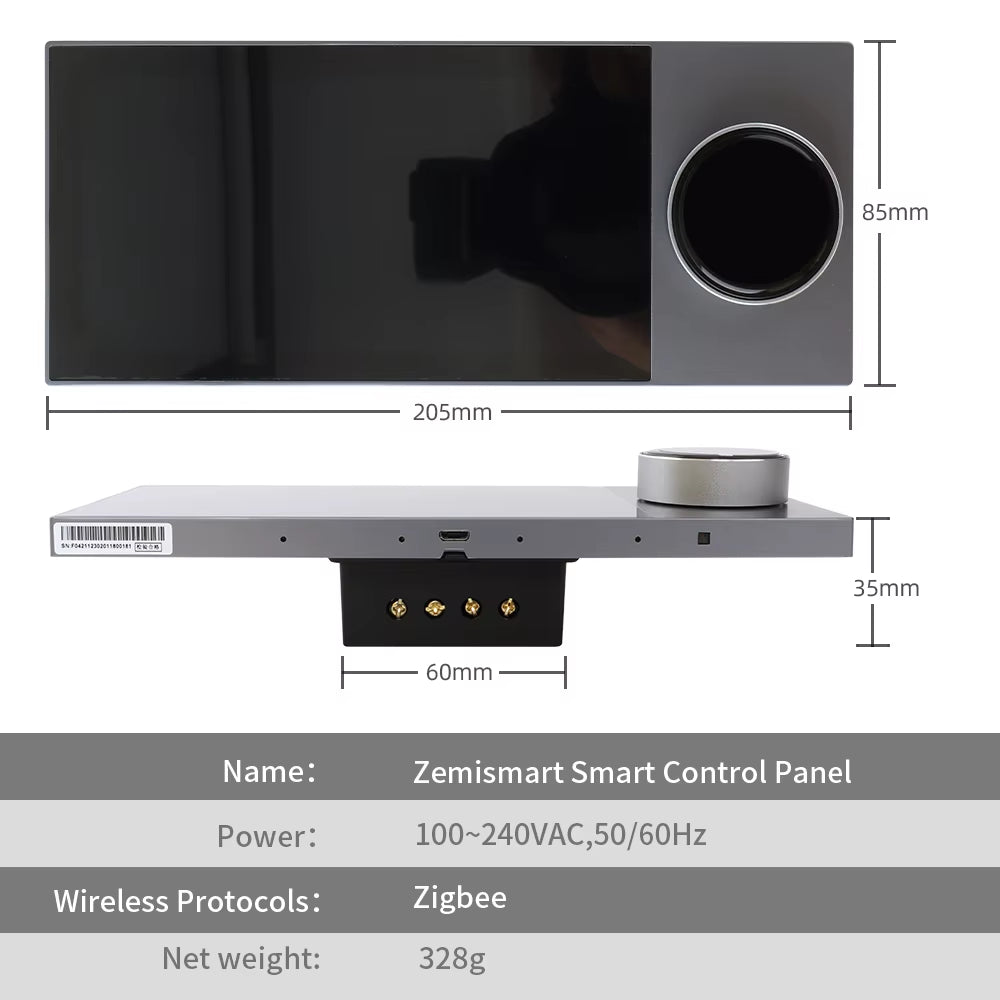

• Dimensions: 205.6x85.6x10mm (without the base), 205.6x85.6x52mm (with the base), 60.9x62.9x24.6mm (back base dimension), 60mm (bolt hole spacing)

• Item Type: Switches

• Switch Type: Touch On/Off Switch

• Certification: CE

• Smart Device: Yes

• Origin: Mainland China

Features

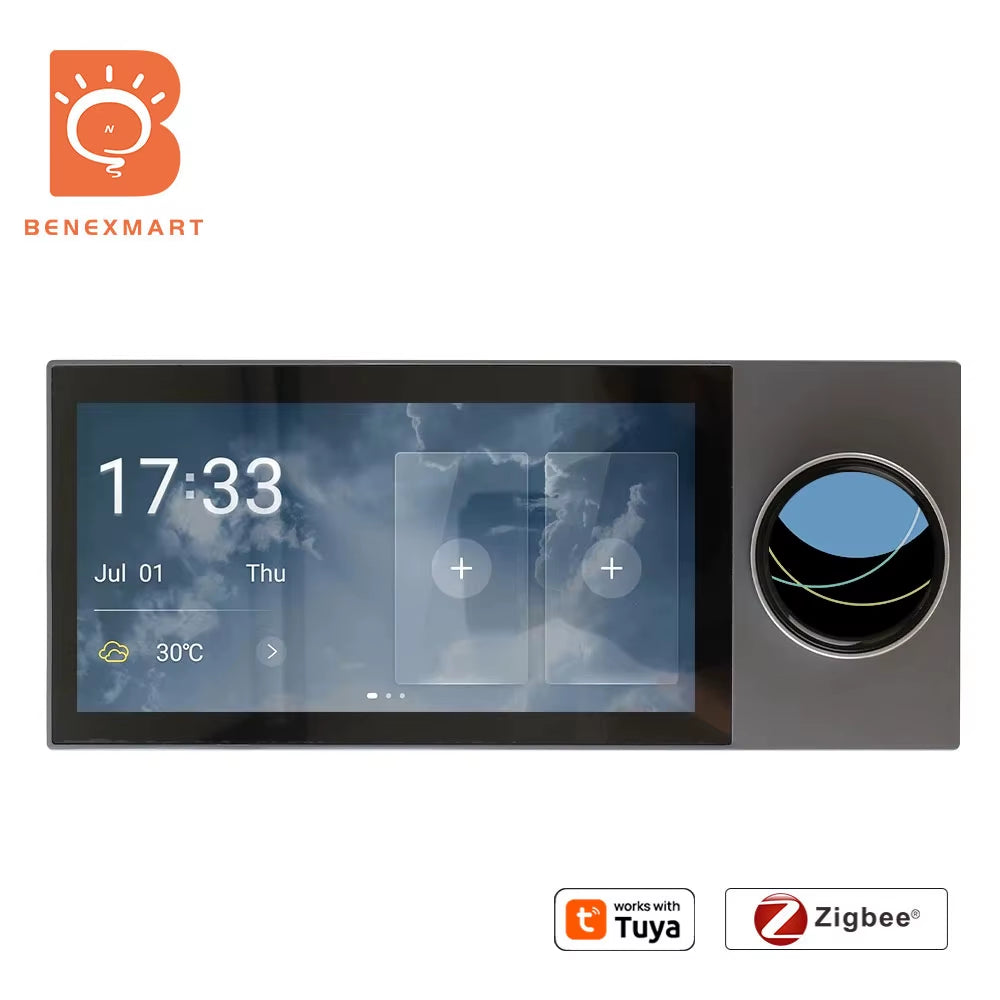

• 6-inch HD LCD Display: IPS multi-touch screen with auto light sensor that automatically adjusts brightness according to surroundings

• ZigBee Gateway Function: Works as a substitute for another Tuya ZigBee gateway, supports up to 100 ZigBee sub devices for intelligent control via APP remote control

• Smart Home Integration: Control lights, curtains, light switches, smart locks, security sensors, smart sockets and other smart home devices (Note: Not all devices can be connected, please contact customer service to confirm compatibility before purchasing)

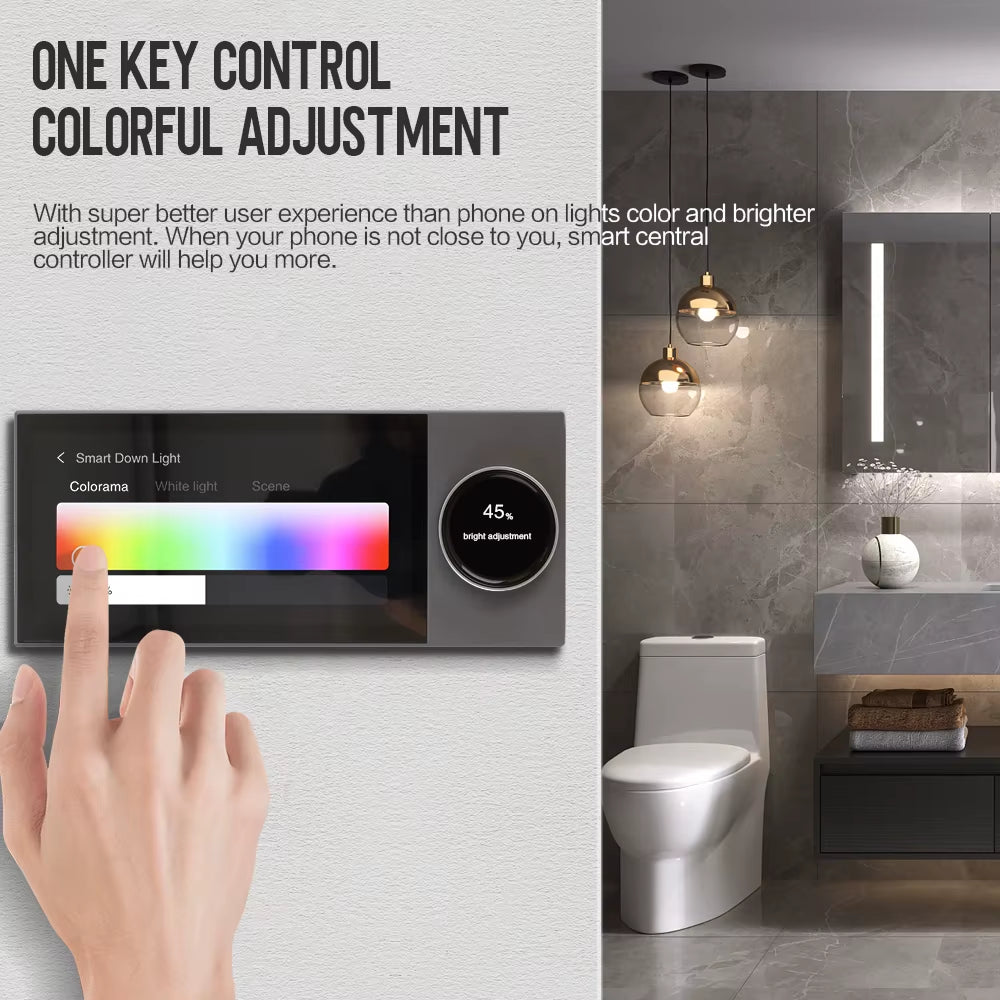

• One-Touch Scene Control: Configure Smart Home scenes in the APP and activate scene modes with one touch on the screen

• Built-in Relays: 2 relays for local control of 2 room light switches

• Audio Capability: Built-in 1W Mono speaker for custom local music playback and optional online music sources

• Advanced Microphone: Quadruple microphone with noise reduction

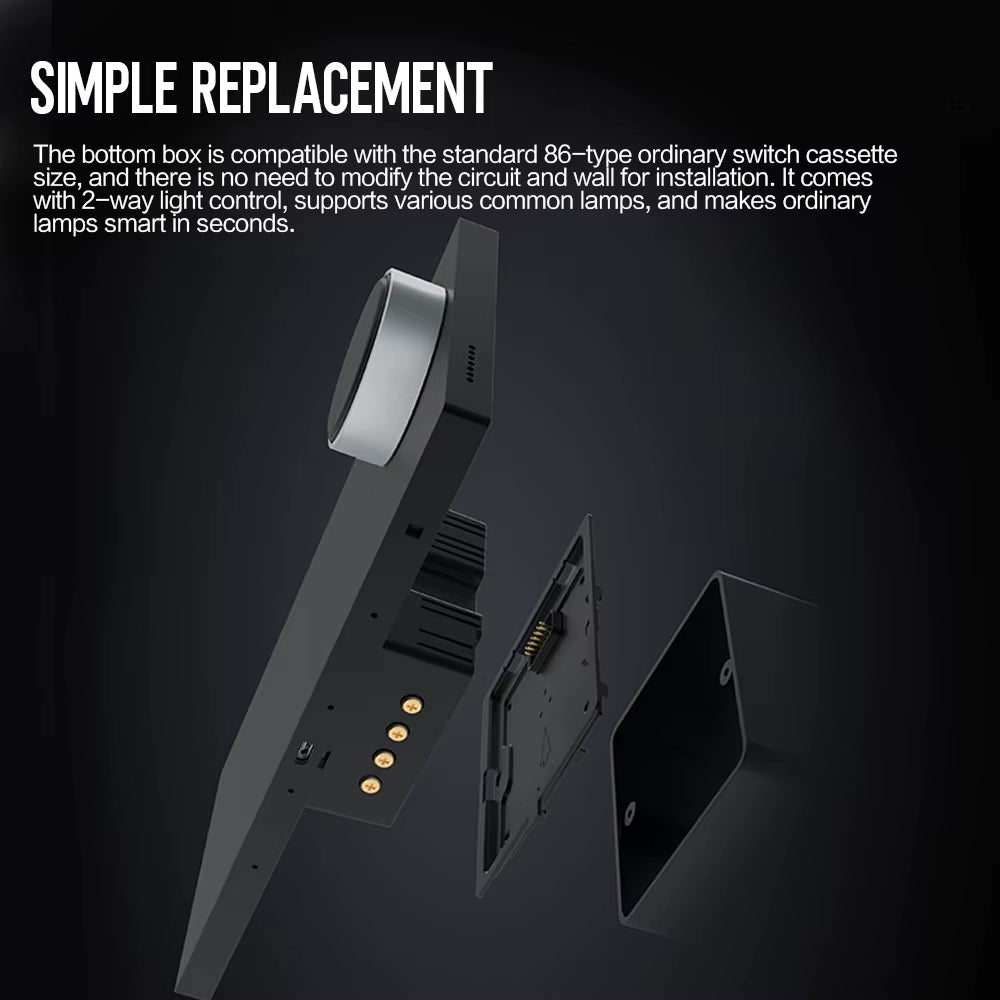

• Easy Installation: Compatible with Chinese and Southeast Asia standard wall boxes for simple in-wall installation

Installation Instructions

• Step 1: Turn off the main power in the electricity box and confirm the fire wire is not alive with a test pencil

• Step 2: Remove the base of the Smart Switch and install it in the wall box

• Step 3: Check the wires and make sure the wires are in good contact with the terminals and no exposed copper wires

• Step 4: Fasten the base to the wall box with mounting screws and fix the Smart Switch back to the base

• Important: The screws should not be fixed too tight during installation to prevent any deformation or damage to the screen and hardware

• Note: If the Smart Switch is not flat after installation, do not press the screen violently. Please check the wall box and the base installation first
